+86-18989460909Product details:
1. Capacity: 1-100 ton
2. Length: 1m to 100m
3. Width: 25-320mm
4. Safety factor: 5:1, 6:1 and 7:1
5. Color: Standard color of chart
6. Material: 100% polyester
7. Standard: EN1492-1:2000/JBT8521-2007
8. Tempreture from -40 to 100
Product Feature:

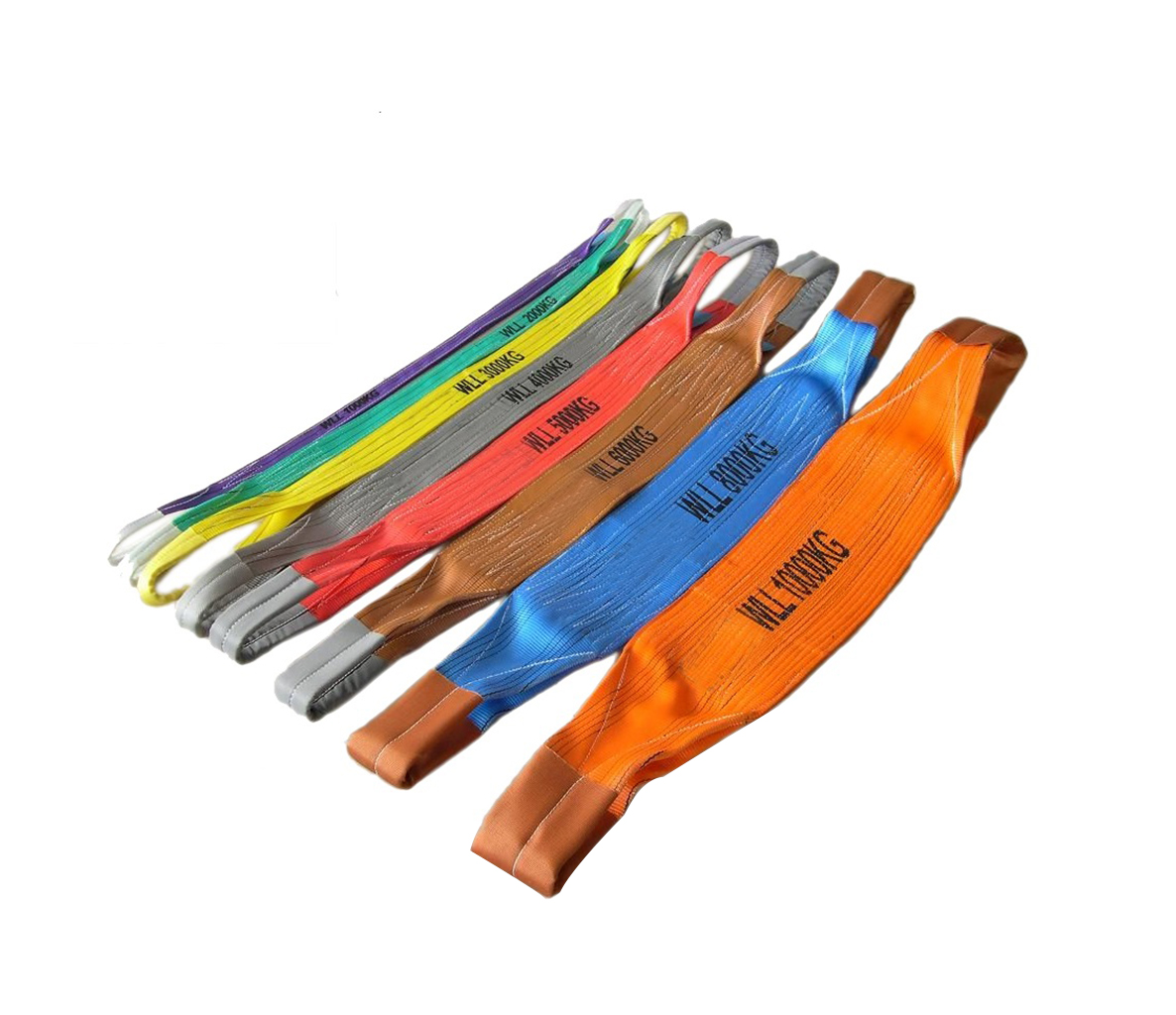

Webbing sling is sling belt manufactured from polyester that is normally used for heavy lifting under the circumstances where wire rope sling lifting or chain lifting are not applicable.
01- Can be single ply or double ply,sewing method is different.
02- The specification can be adjusted according to the customer’needs.
03- Loading surface is wide,to reduce the weight at each loading point.
04- No damages to tender objects.
05- Various loading method.
06- High strength/weight ratio.
07- Anti-abrasion and anti-incision protection sleeve can be attached.

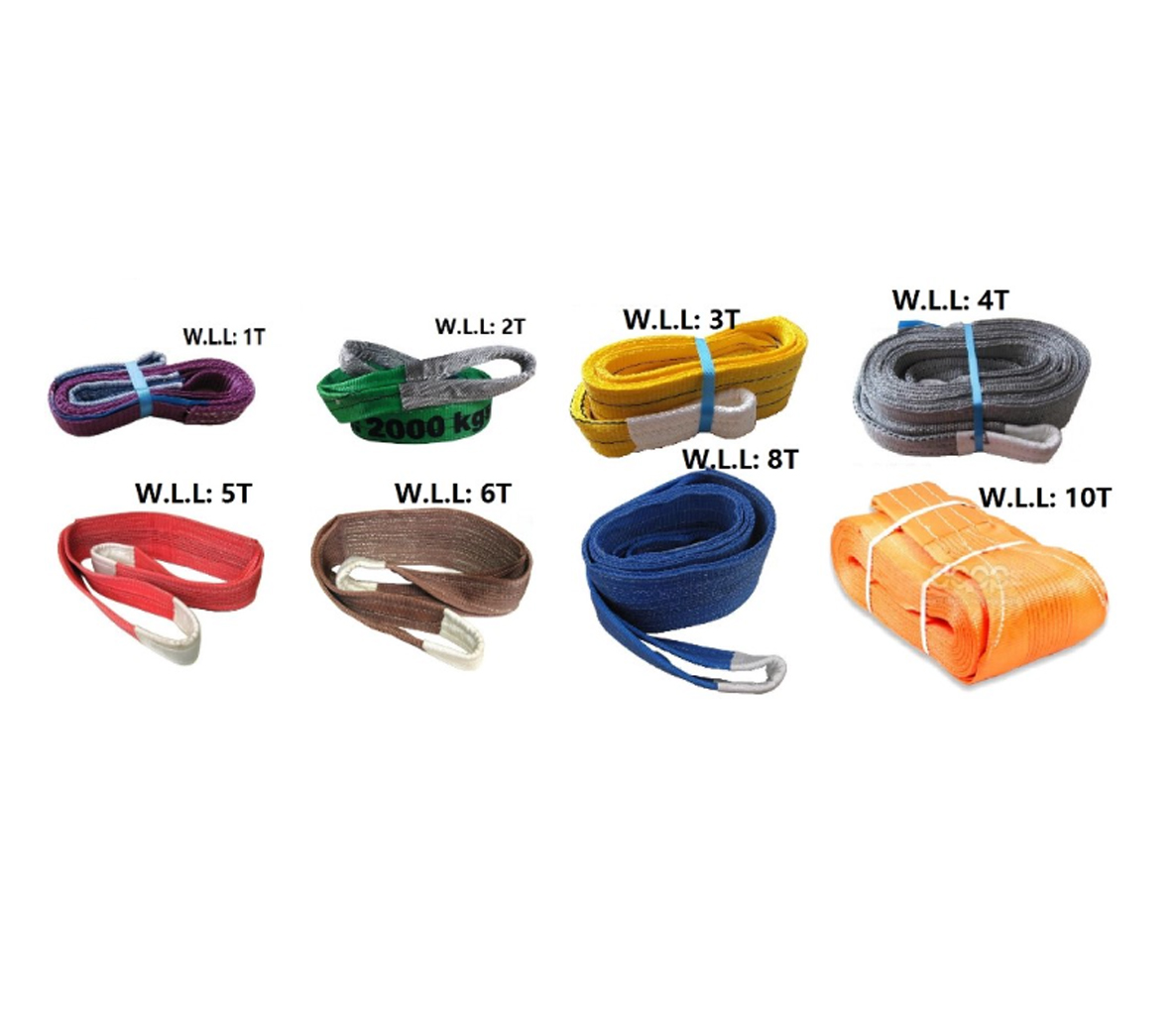

08- Has special label.working load is differentiated by colors according to international standard.
Product Application:
1. Lifting heavy concrete pipe, big sized PVC or steel pipe
2. Lifting cargo
3. Lifting marble, glass and fragile products
4. Lifting machine
5. Safety latch for trucks, etc.
Parameters:
Nylon web belts available in 1 or 2 ply Lengths are measured from bearing point to bearing point Eyes are reinforced with Polyester wear pads
|
webbing width(mm) |
color coded according to DIN-EN-1492-1 |
Working Load Limit with 1 webbing sling |
Working Load Limit with 2 webbing sling |
|||||||
|
Straight lift |
Choked lift |
lift in different angle |
Straight lift |
Choked lift |
Straight lift |
Choked lift |
||||
|
0°-7° |
7°-45° |
45°-60° |
45° |
45° |
45°-60° |
45°-60° |
||||
|
1 |
0.8 |
2 |
1.4 |
1 |
1.4 |
1.12 |
1 |
0.8 |
||
|
25/30 |
WLL1T(Purple) |
1000 |
800 |
2000 |
1400 |
1000 |
1400 |
1120 |
1000 |
800 |
|
50/60 |
WLL2T(Green) |
2000 |
1600 |
4000 |
2800 |
2000 |
2800 |
2240 |
2000 |
1600 |
|
75/90 |
WLL3T(Yellow) |
3000 |
2400 |
6000 |
4200 |
3000 |
4200 |
3360 |
3000 |
2400 |
|
100/120 |
WLL4T(Grey) |
4000 |
3200 |
8000 |
5600 |
4000 |
5600 |
4480 |
4000 |
3200 |
|
125/140 |
WLL5T(Red) |
5000 |
4000 |
10000 |
7000 |
5000 |
7000 |
5600 |
5000 |
4000 |
|
150 |
WLL6T(Brown) |
6000 |
4800 |
12000 |
8400 |
6000 |
8400 |
6720 |
6000 |
4800 |
|
200 |
WLL8T(Blue) |
8000 |
6400 |
16000 |
11200 |
8000 |
11200 |
8960 |
8000 |
6400 |
|
250 |
WLL10T(Orange) |
10000 |
8000 |
20000 |
14000 |
10000 |
14000 |
11200 |
10000 |
8000 |
|
300 |
WLL12T(Orange) |
12000 |
9600 |
24000 |
16800 |
12000 |
16800 |
13440 |
12000 |
9600 |
